Original: $38.65
-65%$38.65
$13.53The Story

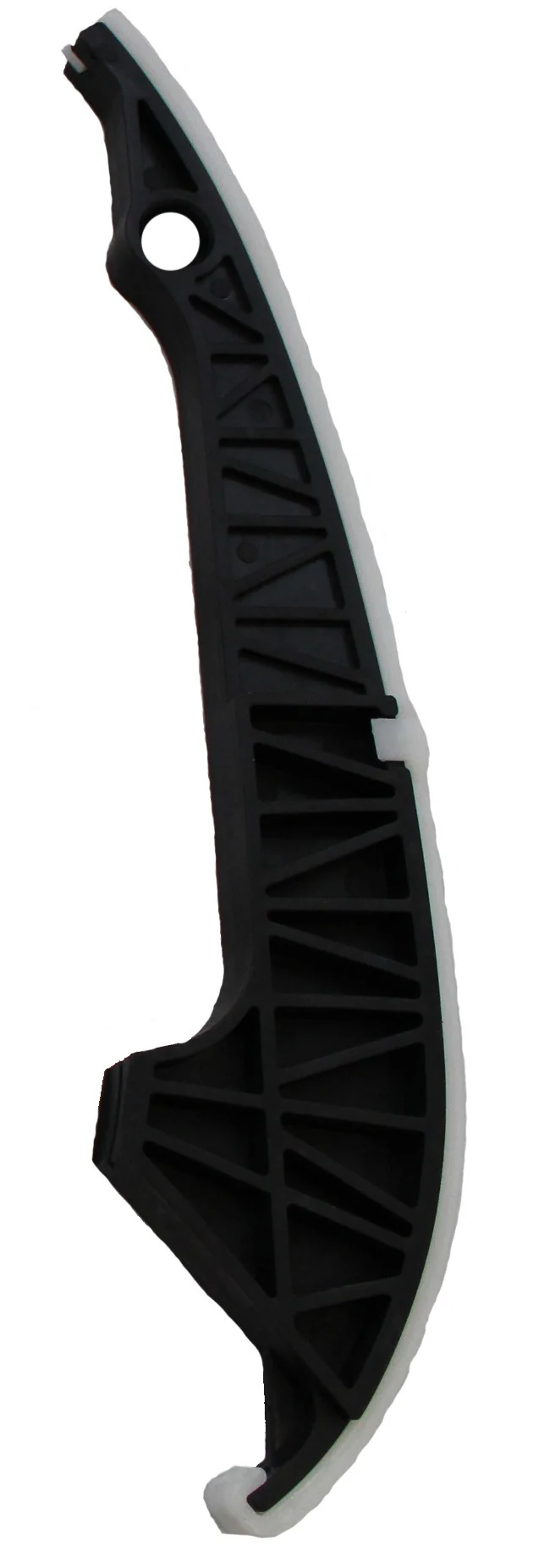

Cloyes 9-5700 Timing Chain Tensioner Guide
The Cloyes 9-5700 timing chain tensioner guide is built for Volkswagen and Audi engines that rely on precise chain control for camshaft and crankshaft synchronization. With a nylon and nylon GF construction, this guide is made to support quiet operation and consistent timing system alignment.
As part of Cloyes timing chain guide components, this piece is designed for service work on VW Jetta, GTI, Tiguan, Passat, and Audi A3, A4, Q5, and related models. Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to maintain timing system integrity.
Key Features
- Part number: 9-5700
- Engine timing chain tensioner guide for valve train service
- Nylon and nylon GF material for durability and low-noise operation
- Includes mounting bracket and shoe
- 1 mounting hole
- Dimensions: 12.25 in length, 2.571 in height, 0.744 in width
- Compatible with select Audi and Volkswagen timing chain applications
Product Details
This Cloyes timing chain tensioner guide is engineered as a guide track for the timing chain, helping maintain proper chain path and alignment between the crankshaft and camshaft. It is a direct-fit style service part for many turbocharged and naturally aspirated Volkswagen and Audi engines across the 2007-2025 model years listed in fitment. The 9-5700 is a practical choice when replacing worn timing components on vehicles such as the Volkswagen Jetta, Golf, GTI, Tiguan, and Passat, as well as Audi A3, A4, A5, Q5, and TT Quattro applications.
This part cross-references Genuine 06H109509Q and 06K109509G for the same application.
What It Helps Address
- Timing chain noise from a worn guide surface
- Chain misalignment caused by guide wear or damage
- Improper chain tracking in the timing system
- Service needs during timing chain replacement on Audi and Volkswagen engines
- Restoration of timing system alignment after component wear
Installation Notes
Inspect the full timing set before installation. For total timing system integrity, replace the chain along with the tensioners, guides, and sprockets during service. Verify the guide mounting points, bracket fitment, and shoe condition before final assembly. This part is listed for N/A position applications only, so confirm engine-specific fitment against the vehicle’s timing system layout before installation.
Quality Assurance
Cloyes has supplied automotive timing system components since 1921 and backs its timing products with technical support and an industry-leading warranty. The brand’s timing chain guides are built using current material and design technology to meet or exceed OEM performance expectations.
Compatible Vehicles
- Fits 2012-2025 Volkswagen Jetta, N/A
- Fits 2008-2010 Volkswagen Jetta, N/A
- Fits 2015-2021 Volkswagen Golf, N/A
- Fits 2008-2020 Audi A3, N/A
- Fits 2017-2020 Audi A4 allroad, N/A
- Fits 2009-2020 Audi A4 Quattro, N/A
- Fits 2010-2020 Audi A5 Quattro, N/A
- Fits 2018-2020 Audi A5 Sportback, N/A
- Fits 2015-2020 Audi Q3, N/A
- Fits 2011-2020 Audi Q5, N/A
- Fits 2015-2020 Audi S3, N/A
- Fits 2018-2020 Audi TT Quattro, N/A
- Fits 2009-2015 Audi TT Quattro, N/A
- Fits 2016-2020 Audi TTS Quattro, N/A
- Fits 2019-2020 Volkswagen Arteon, N/A
- Fits 2018-2020 Volkswagen Atlas, N/A
- Fits 2020 Volkswagen Atlas Cross Sport, N/A
- Fits 2008-2020 Volkswagen GTI, N/A
- Fits 2014-2020 Volkswagen Passat, N/A
- Fits 2008-2010 Volkswagen Passat, N/A
- Fits 2009-2020 Volkswagen Tiguan, N/A
- Fits 2015-2019 Audi A3 Quattro, N/A
- Fits 2009-2013 Audi A3 Quattro, N/A
- Fits 2009-2019 Audi A4, N/A
- Fits 2019 Audi Q7, N/A
- Fits 2012-2019 Volkswagen Beetle, N/A
- Fits 2017-2019 Volkswagen Golf Alltrack, N/A
- Fits 2015-2019 Volkswagen Golf R, N/A
- Fits 2015-2019 Volkswagen Golf SportWagen, N/A
- Fits 2012-2018 Audi A6, N/A
- Fits 2013-2018 Audi A6 Quattro, N/A
- Fits 2015-2018 Audi Q3 Quattro, N/A
- Fits 2017-2018 Volkswagen Tiguan Limited, N/A
- Fits 2009-2017 Volkswagen CC, N/A
- Fits 2013-2016 Audi allroad, N/A
- Fits 2009-2016 Volkswagen Eos, N/A
- Fits 2010-2014 Audi A5, N/A
- Fits 2009-2014 Audi TT, N/A
- Fits 2007 Audi TT, N/A
- Fits 2010 Volkswagen Passat CC, N/A
- Fits 2008-2009 Volkswagen Bora, N/A
