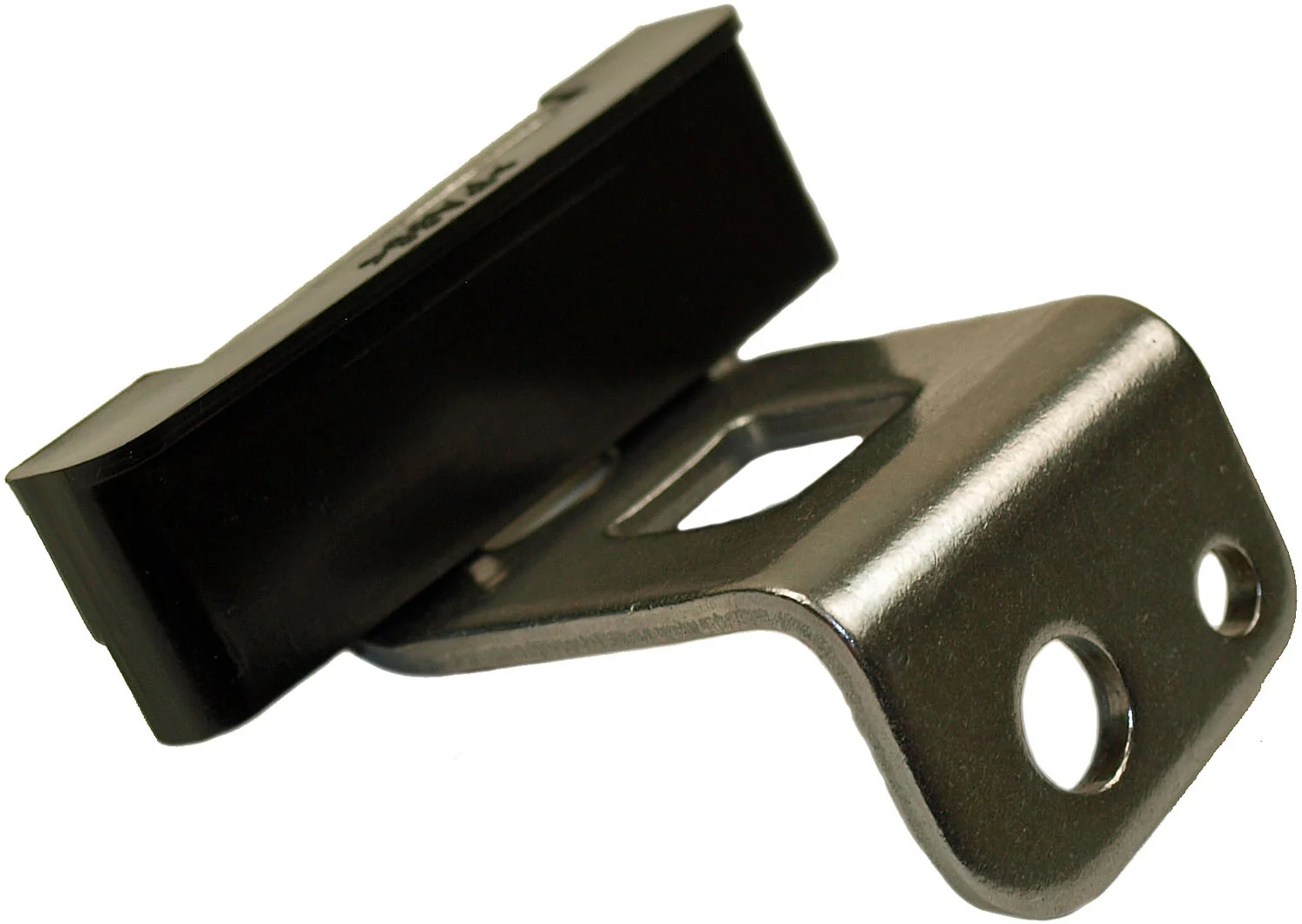

Cloyes Timing Chain Guide 9-5798
Cloyes 9-5798 is an engine timing chain guide for the timing chain path between the crankshaft and camshaft. Built with nylon and steel, it is designed to meet or exceed OEM performance requirements and deliver quiet, maintenance-free operation.
This timing chain guide is part of the Cloyes Timing Chain Guide line, which includes stand-alone guides and kit-based solutions for timing service. Cloyes uses CAD-designed components and advanced materials, with testing focused on function and durability for consistent engine performance.
Key Features
- Engine timing chain guide for the valve train system
- Nylon and steel construction
- Mounting bracket included
- Shoe included
- 2 mounting holes with 5.15 mm and 8.71 mm diameters
- Dimensions: 2.357 in. length, 1.701 in. width, 1.765 in. height
- Direct replacement style for select Lexus and Toyota applications
Detailed Description
The Cloyes 9-5798 timing chain guide helps maintain proper chain routing and tension in the engine timing system. It is listed for a wide range of Lexus and Toyota vehicles, including 2020-2022 Lexus IS300 upper timing chain guide applications, 2009-2019 Toyota Highlander center upper applications, 2010-2017 Toyota Camry center upper applications, and 2011-2013 Toyota Sienna center upper applications. It also fits select Lexus NX300, NX300h, RC300, GS300, ES300h, GS200t, IS200t, NX200t, and RC200t models, along with Toyota Avalon, RAV4, Venza, and Scion tC applications.
This part number, 9-5798, is built for engines that require a precise guide surface to keep the timing chain aligned. This part cross-references Toyota/Lexus OE numbers 13566-0V011 and 13566-36011 for the same application.
What It Helps Address
- Timing chain noise from a worn guide surface
- Chain misalignment in the upper or center upper timing path
- Wear-related timing system service needs during chain replacement
- Guide damage from age, heat, or high-mileage operation
- Loss of proper chain tracking in Lexus and Toyota timing systems
Installation Notes and Tips
Verify engine code and timing cover configuration before installation. Cloyes recommends replacing the chain tensioner(s), sprocket(s), and guide(s) when servicing the timing chain, since these parts work together to keep the chain tight and properly tracked. Confirm the application by year, make, model, and position before ordering 9-5798.
Quality Assurance
Cloyes manufactures this timing chain guide using CAD-designed processes and advanced materials, then tests each part for function and durability. The design is intended to meet or exceed OEM performance requirements for select Lexus and Toyota timing service applications.
