Front Vented Rotor for Kia Soul EV

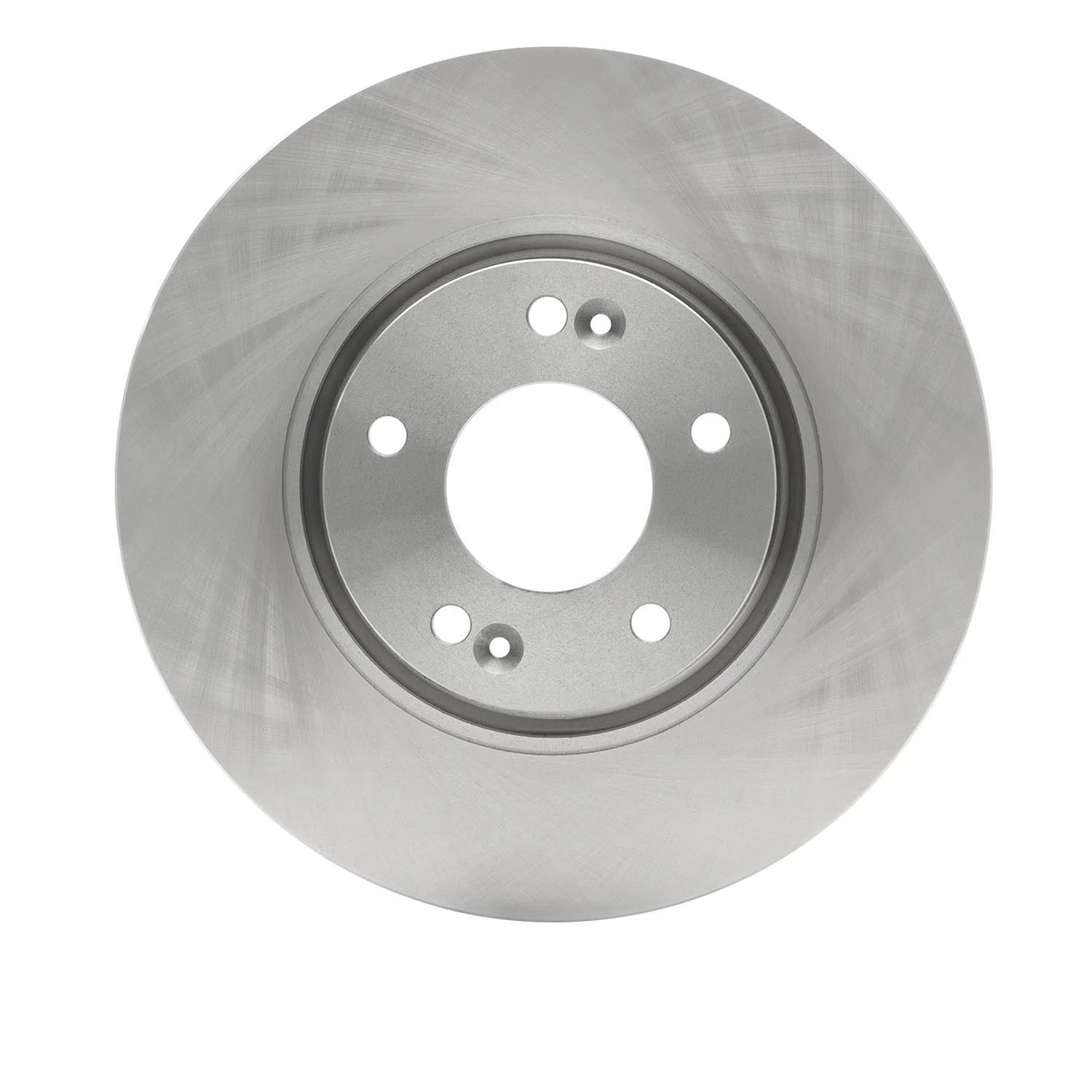

The Dynamite Friction DFC GEOSPEC Coated Rotor, part number 604-21016, is a front disc brake rotor for 2015-2019 Kia Soul EV applications. It uses a vented design with a 300 mm outside diameter and a 47.7 mm overall height for direct-fit brake service on the front axle.
DFC GEOSPEC Coated Rotor Details
The DFC GEOSPEC Coated Rotor line focuses on coated brake rotor construction for corrosion resistance on exposed surfaces while maintaining the friction area needed for braking performance. For Kia Soul EV front brake service, this rotor measures 28.5 mm nominal thickness with a 26.5 mm discard thickness, 69 mm inside diameter, 12.4 mm bolt hole diameter, and 5-bolt mounting pattern.
- Part number 604-21016
- Front disc brake rotor for 2015-2019 Kia Soul EV
- Vented rotor design
- 300 mm outside diameter
- 28.5 mm nominal thickness and 26.5 mm discard thickness
- 5 bolt holes with 12.4 mm bolt hole diameter
- 69 mm inside diameter and 47.7 mm height
Detailed Description
This Dynamite Friction rotor is built for front brake replacement on the Kia Soul EV, with dimensions that match the listed application and support consistent rotor fitment. The coated surface treatment in the DFC GEOSPEC Coated Rotor line helps protect non-friction areas from corrosion, which is important for vehicles exposed to moisture, road salt, and seasonal weather changes. If you are searching for a front brake rotor for 2015-2019 Kia Soul EV, part number 604-21016 is the specified match.
What This Rotor Helps Address
- Front brake pulsation caused by worn or uneven rotors
- Brake noise related to rotor wear or surface corrosion
- Reduced braking consistency from rotor thickness loss
- Visible rust on the rotor hat and non-friction surfaces
- Service replacement for a worn front rotor on the Kia Soul EV
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and front position before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. After installation, follow the vehicle manufacturer’s brake bedding procedure to help establish even pad transfer on the new rotor.
Quality Assurance
Part number 604-21016 is a Dynamite Friction DFC GEOSPEC Coated Rotor built to the listed specifications for the confirmed Kia Soul EV front application. Confirm fitment against the vehicle’s brake system before ordering.
