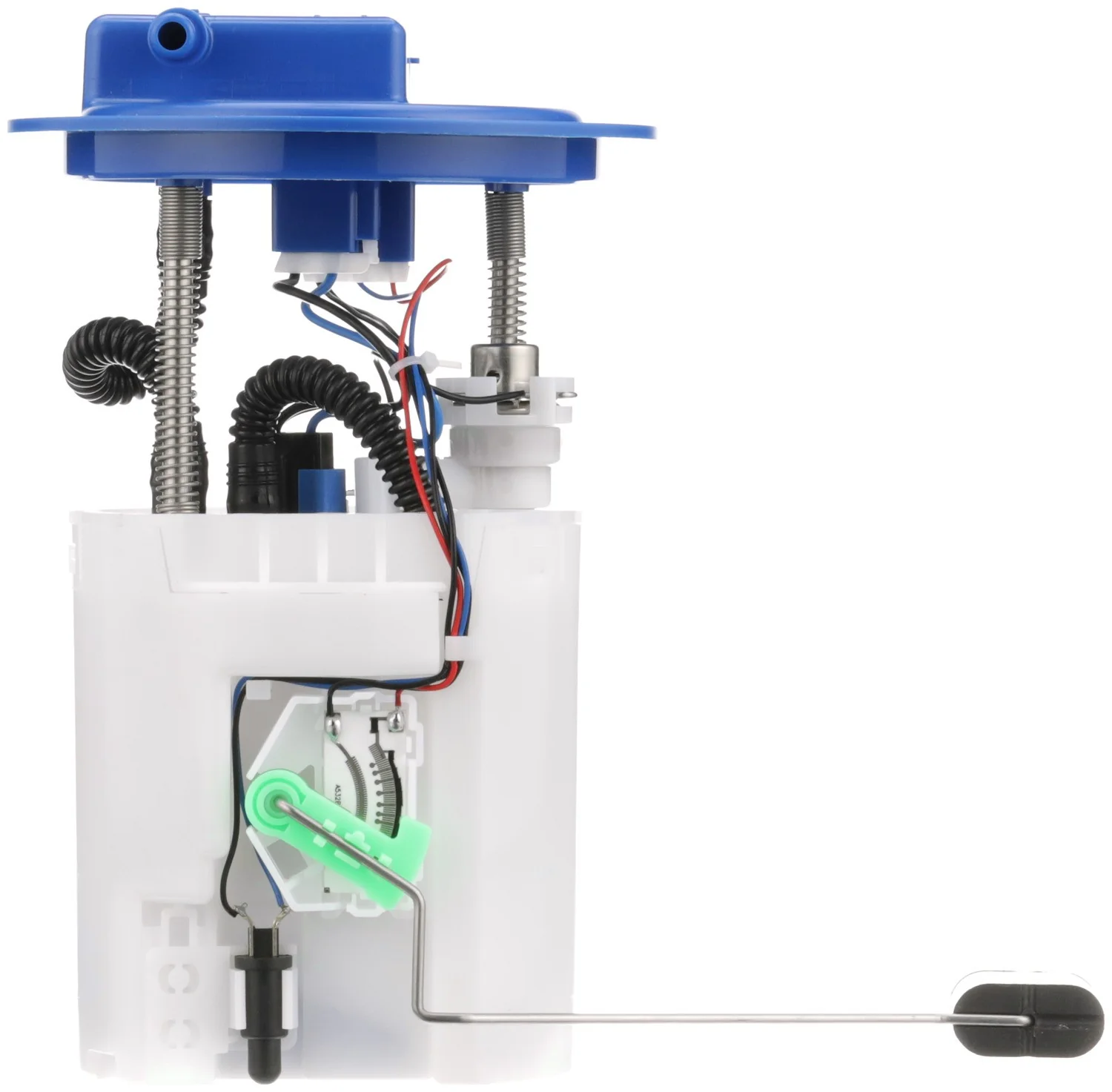

Fuel Pump Module Assembly for Nissan Sentra and Juke
Delphi FG1597 is a standard replacement fuel pump module assembly for select Nissan applications. It combines the electric pump, fuel level sender assembly, regulator, and internal strainer in one in-tank unit for 12-volt gasoline systems.
Built from Delphi’s OE heritage and decades of supplier experience, this module is engineered for consistent fuel delivery and accurate tank-level reporting in the vehicle’s original fuel system layout.
Key Features
- Part number: FG1597
- Fuel pump module assembly with float arm and instruction sheet
- 12.0V electric pump for gasoline applications
- In-tank design with quick-connect outlet
- Fuel pressure regulator included
- Fuel level sender assembly included
- Strainer included; internal strainer design
- Average flow rating: 60
- Maximum pressure: 95.0
- System pressure: 73 psi
- 5-terminal blade connection, male terminals
Product Details
Delphi FG1597 is a fuel pump module assembly designed for 2011-2017 Nissan Juke and 2017-2019 Nissan Sentra applications. It is an in-tank, standard replacement unit for gasoline vehicles and includes the fuel pump, regulator, sender, and strainer in a single assembly. The outlet uses a quick-connect design with a 0.375-inch outside diameter, and the module operates at 12 volts with an average current draw of 10 amps.
This part cross-references A25517 and CFG1597 for the same application. Delphi’s OE-focused manufacturing background supports the fit, function, and electrical layout expected in modern fuel delivery systems. FG1597 is a practical choice when replacing a worn fuel pump module on a Nissan Sentra or Nissan Juke with the listed fitment.
Common Problems This Part Can Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge readings that no longer match tank level
- Low flow or pressure from a failing in-tank pump
- Fuel system noise associated with pump wear
Installation Notes and Tips
Before installation, clean the fuel tank to help prevent future seal problems, as noted for the listed Nissan applications. Verify connector style, outlet type, and sender resistance values before installation. This module uses a blade terminal connection with 5 terminals, a male terminal gender, and no gasket or lock ring included, so reuse or source any required sealing components separately if needed by the vehicle.
Quality Assurance
Delphi builds aftermarket fuel system parts using OE experience and knowledge developed through long-term supplier relationships with major automakers. FG1597 is a standard replacement fuel pump module assembly intended to match the original fuel delivery and sender function for the listed Nissan Sentra and Juke applications.
