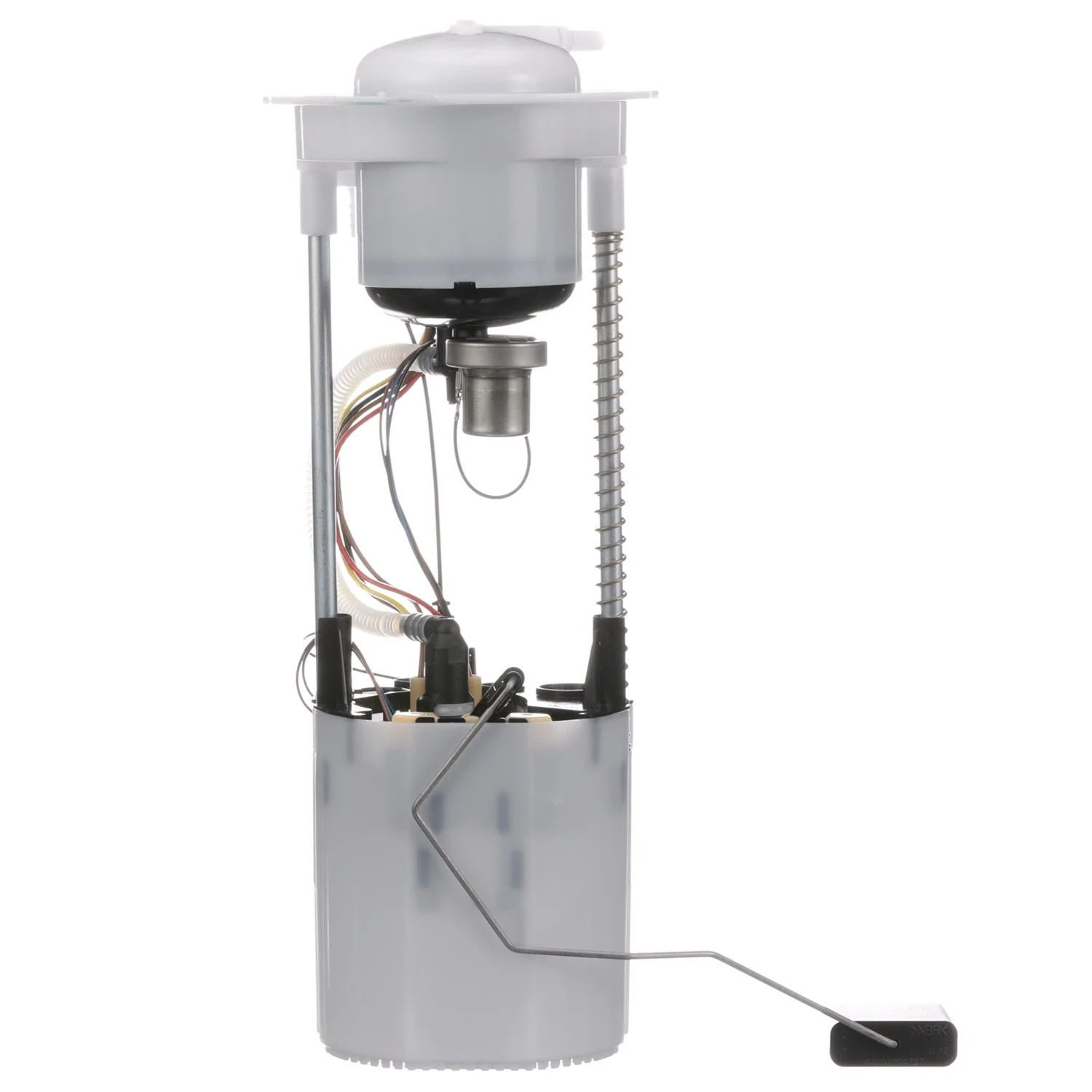

Delphi FG2280 Fuel Pump Module Assembly

Delphi FG2280 Fuel Pump Module Assembly

The Delphi FG2280 fuel pump module assembly is a standard replacement for select Porsche Macan applications. Built for 12-volt gasoline systems, it includes the fuel level sender assembly, regulator, and strainer for a complete in-tank fuel delivery service.

Compatible with 2015-2018 Porsche Macan models, this Delphi fuel pump module assembly is engineered from OE-focused experience and packaged with the float arm and instruction sheet for a direct replacement approach.

Key Features

• Part number FG2280 fuel pump module assembly
• Fits 2015-2018 Porsche Macan
• In-tank electric pump for gasoline applications
• 12.0-volt operation with 10-amp average current draw
• Fuel level sender assembly included
• Regulator included
• Strainer included with internal strainer design
• Quick-connect outlet, 0.375 in. outside diameter
• 7-terminal blade connector with male terminals
• Standard replacement grade

Detailed Description

Delphi FG2280 is a fuel pump module assembly for the Porsche Macan that combines the pump, sender, regulator, and strainer into one in-tank unit. It is built for gasoline fuel systems and uses a quick-connect outlet with a blade-style 7-terminal electrical connection. Delphi draws on OE heritage and supplier experience across a wide range of vehicles and model years, bringing application-specific knowledge to this aftermarket replacement.

This part cross-references DFG2280 and SP5151M for the same application. The FG2280 is a practical choice when servicing a Porsche Macan fuel delivery system that needs a complete module replacement rather than a standalone pump.

What It Helps Fix

• Hard starting caused by weak fuel pressure
• Engine stalling from inconsistent fuel delivery
• Fuel gauge readings that are inaccurate or erratic
• Loss of pump prime in the in-tank fuel system
• Fuel starvation under load

Installation Notes and Tips

Compatible with 2015-2018 Porsche Macan, this module installs in the fuel tank. Delphi notes that the fuel tank should be cleaned before installation to help prevent future seal problems. The package includes the fuel pump module assembly with float arm and an instruction sheet; gasket or seal and lock ring are not included.

Quality Assurance

Delphi builds aftermarket fuel system parts using more than a century of OE experience and knowledge developed as a supplier to major automakers. That OE-focused background is reflected in the FG2280 fuel pump module assembly for Porsche Macan applications.
