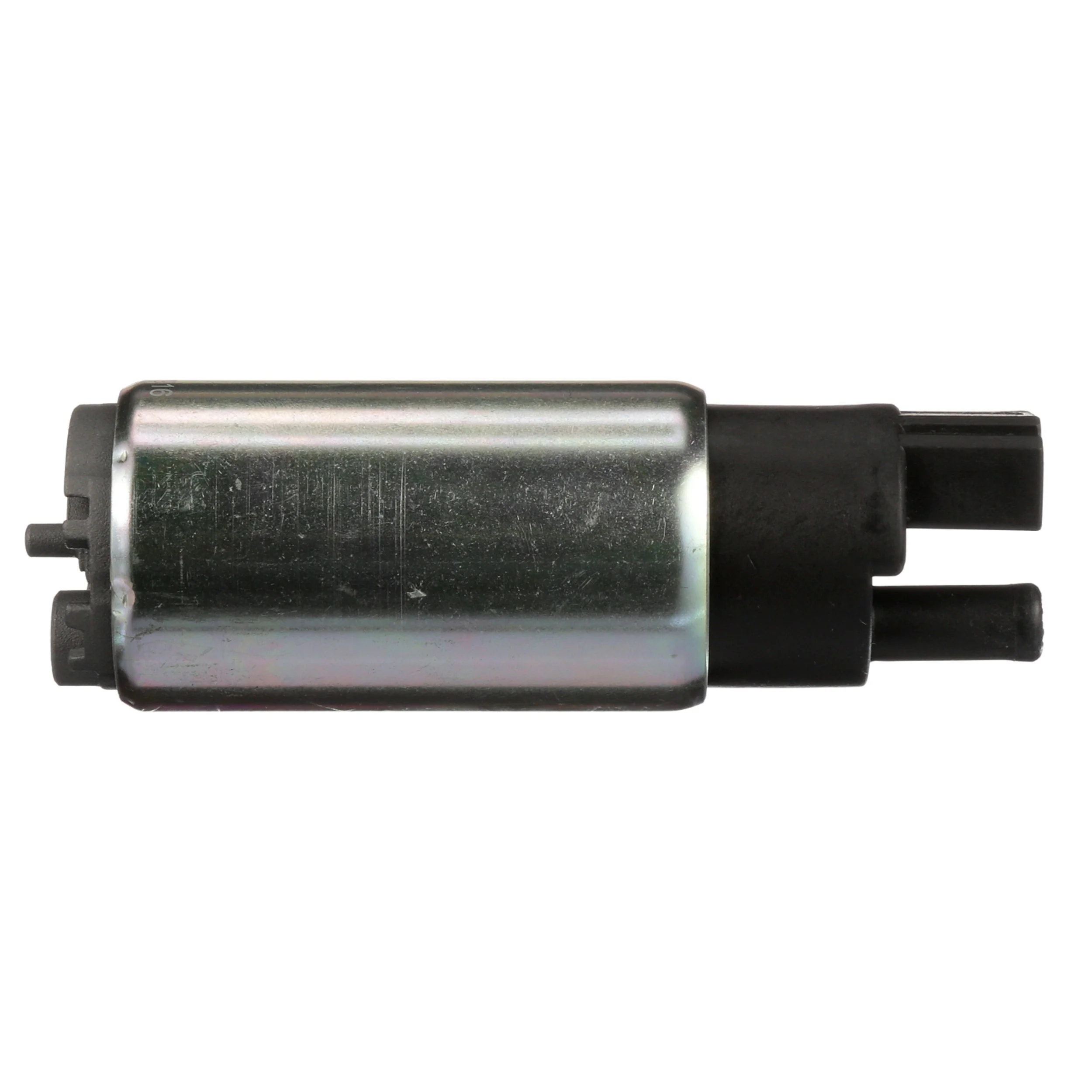

Sparta PN2004 Electric Fuel Pump - In-Tank

Electric Fuel Pump for Toyota and Scion Applications

The Sparta PN2004 is an in-tank electric fuel pump built as a standard replacement for specific Toyota, Scion, Pontiac, Chevrolet, Geo, and Lexus applications. It uses a turbine pump design, 12-volt operation, and a specific-fit layout to match the original fuel delivery setup on higher-mileage and earlier model vehicles.

Backed by Delphi OE fuel system expertise, this pump is built for direct replacement service on vehicles such as the Toyota Corolla, Toyota Tacoma, and Scion xB. The PN2004 is a practical choice when restoring fuel pressure and consistent delivery in an in-tank gasoline system.

Key Features

• Sparta PN2004 electric fuel pump for in-tank gasoline applications
• Specific fit replacement for select Toyota, Scion, Pontiac, Chevrolet, Geo, and Lexus vehicles
• Turbine pump design for steady fuel delivery
• 12.0-volt electrical system with 2-pin terminal configuration
• Operating pressure range: 44 to 80 psi
• Average flow rating: 26.0
• Standard replacement grade for earlier model and higher-mileage vehicles
• Mounting hardware, gasket or seal, and installation instructions included

Detailed Description

Sparta PN2004 is an internal, in-tank electric fuel pump designed for gasoline fuel systems that require a specific-fit replacement. It features a rectangular female connector, male terminals, hose-bead outlet, strainer-style inlet, and a turbine-style pump design. The unit measures 113.0 in length, operates at 12 volts, and draws an average of 6.0 amps. For service work, the included seal and mounting hardware help support a complete replacement process.

This part cross-references Bosch 69487 and Carter P72188 for the same application. Compatible vehicle coverage includes Fits 2000-2005 Toyota Echo, In-Tank and Fits 2004-2006 Scion xB, In-Tank, along with other Toyota and related platform applications. Use PN2004 when replacing a worn in-tank fuel pump on vehicles such as the Toyota Camry, Toyota RAV4, or Toyota Tacoma.

Common Problems This Part Can Address

• Hard starting caused by weak fuel pressure
• Engine hesitation under load from inconsistent fuel delivery
• Stalling related to a failing in-tank pump
• Loss of power during acceleration
• Fuel system noise from a worn electric pump

Installation Notes and Tips

Install PN2004 only in the in-tank position specified for the listed applications. Verify connector style, terminal count, outlet size, and pressure requirements before installation. Because the pump is specific fit, confirm vehicle year, make, and model against the fitment list before service. Replace the seal during installation and inspect the fuel tank module, wiring, and hoses for wear before reassembly.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier with factory-level fuel system knowledge. That OE background supports fit and performance expectations for earlier model and higher-mileage vehicles that need a standard replacement fuel pump.

• Fits 2003-2006 Pontiac Vibe, In-Tank
• Fits 2004-2006 Scion xA, In-Tank
• Fits 2004-2006 Scion xB, In-Tank
• Fits 1994-2005 Toyota Celica, In-Tank
• Fits 2000-2005 Toyota Echo, In-Tank
• Fits 2000-2005 Toyota MR2 Spyder, In-Tank
• Fits 1996-2005 Toyota RAV4, In-Tank
• Fits 1995-2004 Toyota Tacoma, In-Tank
• Fits 1998-2002 Chevrolet Prizm, In-Tank
• Fits 1992-2002 Toyota 4Runner, In-Tank
• Fits 1993-2002 Toyota Corolla, In-Tank
• Fits 1992-2001 Lexus ES300, In-Tank
• Fits 1992-2001 Toyota Camry, In-Tank
• Fits 1998-2000 Toyota Sienna, In-Tank
• Fits 1995-1999 Toyota Avalon, In-Tank
• Fits 1992-1998 Toyota Paseo, In-Tank
• Fits 1993-1998 Toyota T100, In-Tank
• Fits 1990-1998 Toyota Tercel, In-Tank
• Fits 1993-1997 Geo Prizm, In-Tank
• Fits 1992-1995 Toyota Pickup, In-Tank
• Fits 1994-1995 Toyota Previa, In-Tank
