The Story

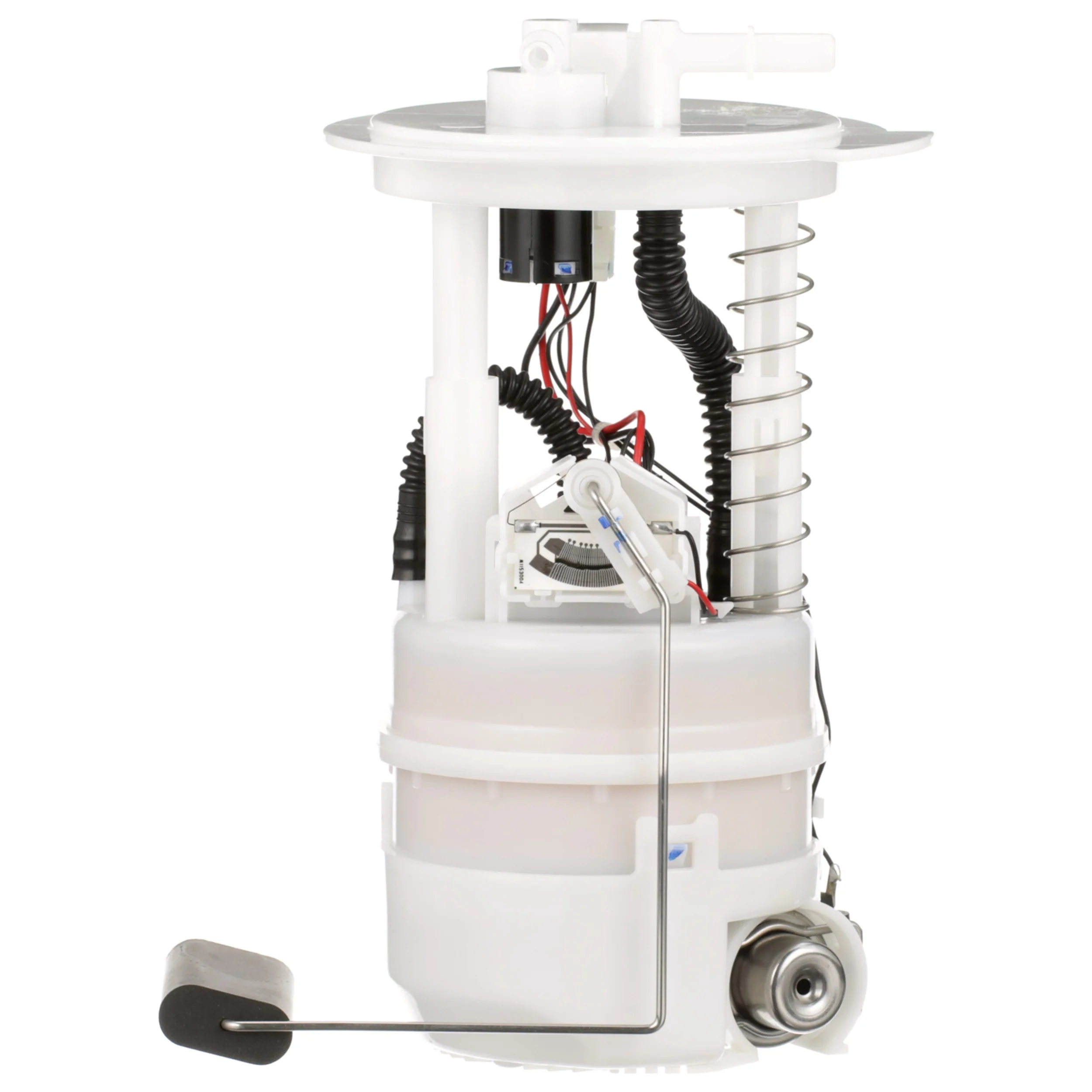

Fuel Pump Module Assembly for Nissan Applications
Sparta PN3039 is a standard replacement fuel pump module assembly built for specific Nissan applications. It includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete in-tank fuel delivery service on select 2004-2009 Nissan Quest, 2004-2008 Nissan Maxima, and 2004-2006 Nissan Altima models.
Key Features
- Specific-fit fuel pump module assembly for in-tank installation
- Electric turbine pump design with 13-volt operation
- Maximum pressure: 52 psi; minimum pressure: 48 psi
- Average flow rating: 23
- Includes fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm
- Quick-connect outlet design with 2 outlets and 1 connector
- Plastic housing with nitrile rubber seal material
- 5-terminal blade connection, female connector, male terminals
Detailed Description
Sparta PN3039 is engineered as a direct-fit replacement fuel pump module assembly for higher-mileage and earlier-model vehicles. Backed by Delphi OE fuel system expertise, it is designed around the fit and performance requirements of select Nissan Quest, Maxima, and Altima applications. This module uses an internal turbine pump layout and includes the sender, regulator, filter, strainer, and seal needed for a complete fuel tank service.
This part cross-references Bosch 67991 and Spectra Premium SP4013M for the same application. Use PN3039 when servicing fuel delivery on 2004-2009 Nissan Quest, 2004-2008 Nissan Maxima, and 2004-2006 Nissan Altima models.
Common Issues This Part Addresses
- Hard starting caused by weak fuel pressure
- Engine hesitation or stalling from inconsistent fuel delivery
- Incorrect fuel level readings from a worn sending unit
- Fuel starvation from a clogged or failing in-tank pump assembly
- Reduced performance from a restricted internal filter or strainer
Installation Notes and Tips
- Confirm vehicle fitment by year and model before installation.
- Replace the tank seal during service; this module includes a gasket/seal.
- Inspect the tank and fuel lines for contamination before installing the new assembly.
- Follow factory service procedures for depressurizing the fuel system and accessing the in-tank module.
- Verify connector style, outlet type, and sender resistance range during diagnosis.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for specific-fit replacement on earlier-model, higher-mileage vehicles. PN3039 is built as a standard replacement fuel pump module assembly for the listed Nissan applications.
Description
Fuel Pump Module Assembly for Nissan Applications
Sparta PN3039 is a standard replacement fuel pump module assembly built for specific Nissan applications. It includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete in-tank fuel delivery service on select 2004-2009 Nissan Quest, 2004-2008 Nissan Maxima, and 2004-2006 Nissan Altima models.
Key Features
- Specific-fit fuel pump module assembly for in-tank installation
- Electric turbine pump design with 13-volt operation
- Maximum pressure: 52 psi; minimum pressure: 48 psi
- Average flow rating: 23
- Includes fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm
- Quick-connect outlet design with 2 outlets and 1 connector
- Plastic housing with nitrile rubber seal material
- 5-terminal blade connection, female connector, male terminals
Detailed Description
Sparta PN3039 is engineered as a direct-fit replacement fuel pump module assembly for higher-mileage and earlier-model vehicles. Backed by Delphi OE fuel system expertise, it is designed around the fit and performance requirements of select Nissan Quest, Maxima, and Altima applications. This module uses an internal turbine pump layout and includes the sender, regulator, filter, strainer, and seal needed for a complete fuel tank service.
This part cross-references Bosch 67991 and Spectra Premium SP4013M for the same application. Use PN3039 when servicing fuel delivery on 2004-2009 Nissan Quest, 2004-2008 Nissan Maxima, and 2004-2006 Nissan Altima models.
Common Issues This Part Addresses
- Hard starting caused by weak fuel pressure
- Engine hesitation or stalling from inconsistent fuel delivery
- Incorrect fuel level readings from a worn sending unit
- Fuel starvation from a clogged or failing in-tank pump assembly
- Reduced performance from a restricted internal filter or strainer
Installation Notes and Tips
- Confirm vehicle fitment by year and model before installation.
- Replace the tank seal during service; this module includes a gasket/seal.
- Inspect the tank and fuel lines for contamination before installing the new assembly.
- Follow factory service procedures for depressurizing the fuel system and accessing the in-tank module.
- Verify connector style, outlet type, and sender resistance range during diagnosis.
Quality Assurance
Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for specific-fit replacement on earlier-model, higher-mileage vehicles. PN3039 is built as a standard replacement fuel pump module assembly for the listed Nissan applications.
