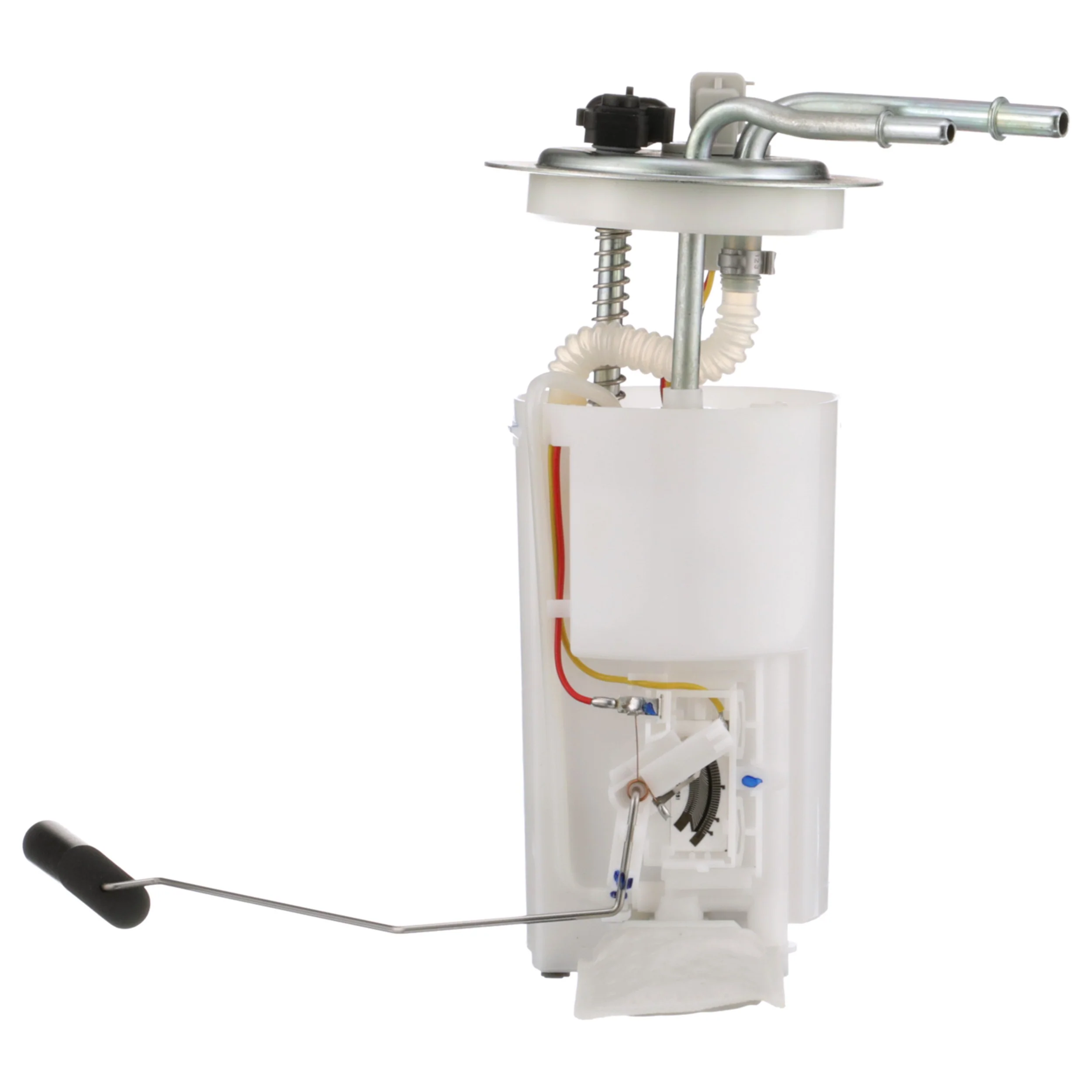

Sparta PN3055 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Select GM Applications

Sparta PN3055 is a specific-fit fuel pump module assembly for select 2002-2004 Chevrolet Suburban 1500 and 2002-2004 GMC Yukon XL 1500 models. Built as a standard replacement for in-tank flex-fuel systems, it includes the fuel sending unit, strainer, gasket, and fuel tank pressure sensor for a complete service solution.

Backed by Delphi distribution and OE-focused engineering, this module is aimed at higher-mileage and earlier model vehicles where correct fit and dependable fuel delivery matter. If you are replacing a worn fuel pump module on a Chevrolet Suburban 1500 or GMC Yukon XL 1500, Sparta PN3055 provides the key components needed for a direct-service repair.

Key Features

• Specific-fit fuel pump module assembly for select GM trucks and SUVs
• Fits 2002-2004 Chevrolet Suburban 1500 and 2002-2004 GMC Yukon XL 1500
• In-tank electric turbine pump design
• For flex-fuel applications
• Includes fuel sending unit, strainer, gasket/seal, and instruction sheet
• Fuel tank pressure sensor included
• 12-volt system with blade terminals and a square female connector
• Quick-connect outlet design with two outlets
• Standard replacement grade with plastic housing
• Average flow rating: 33; maximum pressure: 78

Detailed Description

Sparta PN3055 is a fuel pump module assembly engineered for in-tank installation on select Chevrolet Suburban 1500 and GMC Yukon XL 1500 models from 2002 through 2004. It is built for flex-fuel service and uses an electric turbine pump design to deliver fuel at a rated pressure range of 51 to 78, with an average current draw of 10. The module also includes the fuel sending unit and fuel tank pressure sensor, helping restore fuel level reporting and system feedback during replacement.

This part cross-references Airtex Fuel Pumps E3560M and Carter P74905M for the same application. For shoppers searching for a fuel pump module assembly for 2002-2004 Chevrolet Suburban 1500 or 2002-2004 GMC Yukon XL 1500, Sparta PN3055 is a direct-fit option built around the original vehicle configuration.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Incorrect fuel level readings from a failing sending unit
• Fuel pressure loss in an aging in-tank module
• Driveability issues tied to a worn fuel pump assembly

Installation Notes and Tips

Install Sparta PN3055 in the fuel tank using the included seal and follow the instruction sheet provided in the package. Verify connector style, outlet configuration, and tank layout before installation, and transfer only the vehicle-specific components required by the application. Because mounting hardware and lock ring are not included, confirm the existing hardware condition before beginning the repair.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for higher-mileage and earlier model vehicles where fit and performance consistency are important. PN3055 is a standard replacement fuel pump module assembly built to match the specified GM applications.
