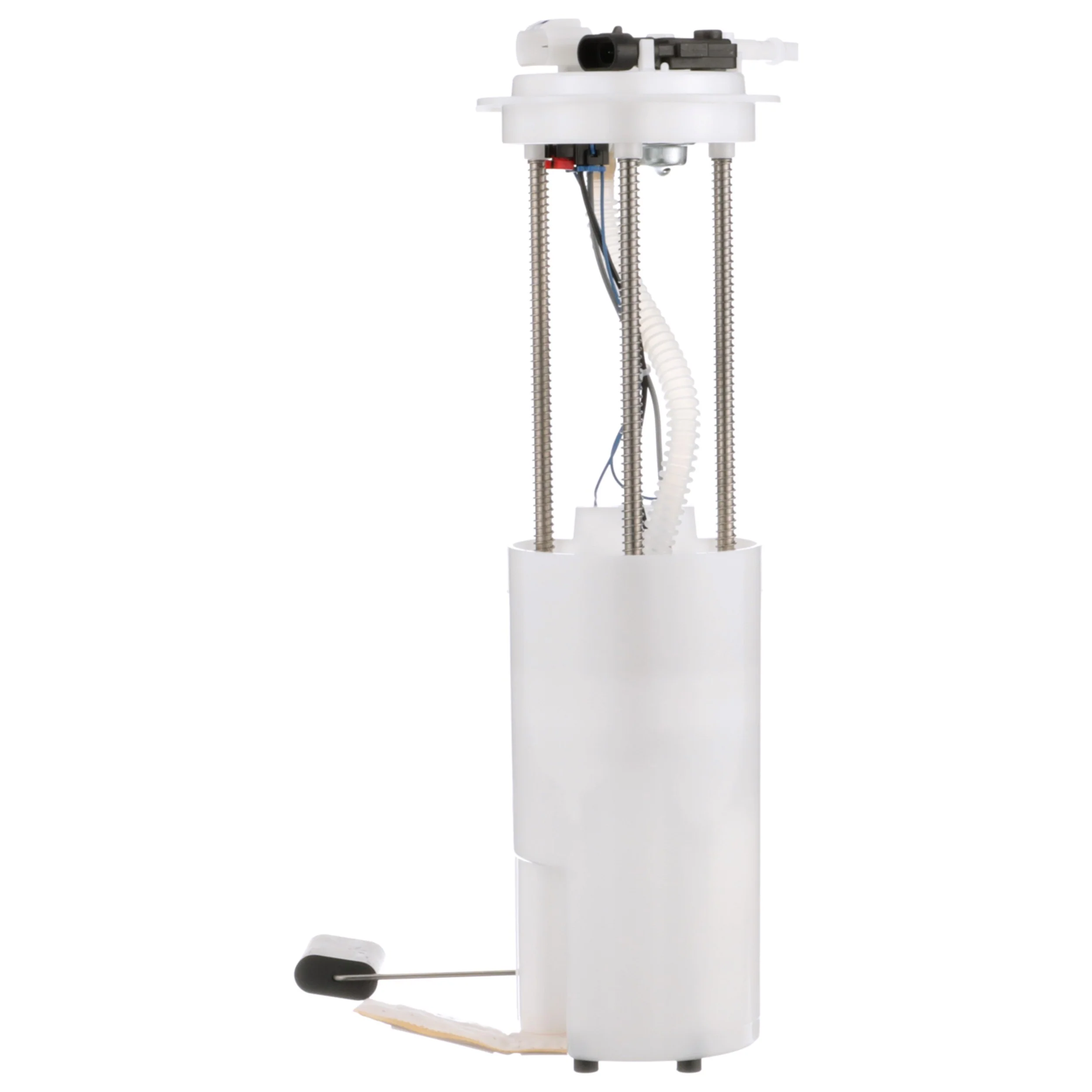

Sparta PN3056 Fuel Pump Module Assembly

Fuel Pump Module Assembly for S10 and Sonoma

Sparta PN3056 is a specific-fit in-tank fuel pump module assembly for select 2002-2003 Chevrolet S10 and GMC Sonoma applications. Built as a standard replacement, it includes the fuel sending unit, seal, strainer, wire harness, and float arm for a complete service-focused repair.

Key Features

• Specific-fit fuel pump module assembly for gas applications
• In-tank electric turbine pump design
• Fuel sending unit included
• Fuel tank pressure sensor included
• Strainer and gasket/seal included
• Wire harness included with 4-wire, 1-connector configuration
• Quick-connect outlet with 3 outlets and 0.375 in. outside diameter
• Standard replacement grade for select Chevrolet S10 and GMC Sonoma models

Detailed Description

Sparta PN3056 is engineered for higher-mileage and earlier-model vehicles and is distributed by Delphi, an OE fuel system supplier. This fuel pump module assembly is designed for in-tank installation and uses an electric turbine pump with a 13-volt operating specification, 62 to 109 psi pressure range, and an average flow rating of 18. It also includes a fuel tank pressure sensor, making it a practical replacement for restoring fuel delivery and sender function in one service.

This part cross-references Bosch 67421 and Carter P74902M for the same application. Compatible with 2002-2003 Chevrolet S10 and 2002-2003 GMC Sonoma, PN3056 is a direct-fit option for owners searching for a fuel pump module assembly for Chevrolet S10 fuel system repair or GMC Sonoma fuel sender replacement.

Common Repair Uses

• Hard starting caused by weak or failing fuel delivery
• Fuel gauge inaccuracy from a worn sending unit
• Low fuel pressure or intermittent pressure loss
• Engine hesitation under load from inconsistent pump output
• Fuel tank service requiring a complete module replacement

Installation Notes and Tips

PN3056 installs inside the fuel tank and uses a blade terminal, female oval connector, and quick-connect outlet. Verify tank condition, connector integrity, and line routing before installation. The package includes the module assembly with float arm, seal, splices, wire harness, and instruction sheet; mounting hardware and lock ring are not included.

Quality Assurance

Sparta fuel system components are backed by Delphi distribution and OE-focused engineering knowledge for fit and performance on earlier model vehicles. PN3056 is built as a standard replacement fuel pump module assembly for the specified Chevrolet S10 and GMC Sonoma applications.
