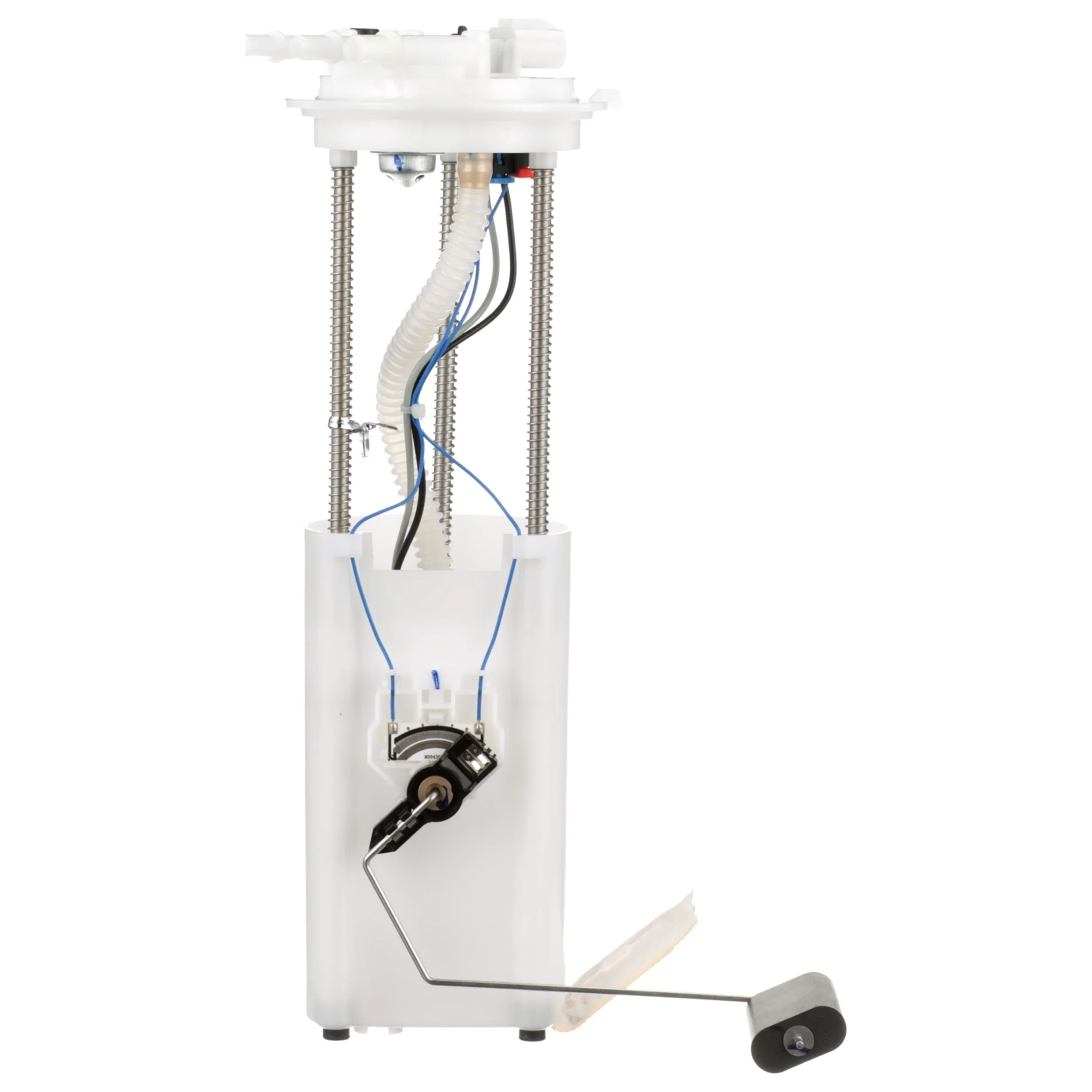

Sparta PN3059 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Blazer and Jimmy

Sparta PN3059 is a specific-fit in-tank fuel pump module assembly for select Chevrolet Blazer and GMC Jimmy applications. Built as a standard replacement for higher-mileage and earlier model vehicles, it combines the pump, sending unit, seal, strainer, and harness components needed for a complete fuel delivery service.

Key Features

• Specific-fit fuel pump module assembly for gas applications
• In-tank electric turbine pump design
• Fuel sending unit included
• Fuel tank pressure sensor included
• Strainer and gasket/seal included
• Wire harness included with 4-wire, 1-connector configuration
• Quick-connect outlet with 3 outlets
• Standard replacement grade for OE-style service
• Maximum pressure: 109 psi; minimum pressure: 58 psi
• Average flow rating: 29 and average current draw: 7

Detailed Description

Sparta PN3059 is an electric in-tank fuel pump module assembly engineered for gasoline systems and specific vehicle fitment. It features a turbine-style pump, plastic housing, blade terminals, female connector, and a quick-connect outlet arrangement for service on select 1997-2002 Chevrolet Blazer and 1997-2002 GMC Jimmy models. The module includes the fuel sending unit, external strainer, nitrile rubber seal, wire harness, and fuel tank pressure sensor, helping restore fuel delivery and tank-level signal function in one assembly. This part cross-references Airtex Fuel Pumps E3954M and Carter P74761M for the same application. PN3059 is a practical OE-style replacement for drivers servicing a Chevrolet Blazer or GMC Jimmy fuel system.

Common Repair Uses

• Hard starting caused by weak fuel pressure
• Engine stalling from inconsistent fuel delivery
• Fuel gauge readings that no longer track tank level correctly
• Fuel pump noise or intermittent pump operation
• Fuel tank pressure sensor faults tied to the module assembly

Installation Notes and Tips

Install PN3059 only on the listed specific-fit applications: Fits 1997-2002 Chevrolet Blazer, N/A and Fits 1997-2002 GMC Jimmy, N/A. Confirm the tank is clean before installation, replace the seal during service, and verify connector orientation, outlet routing, and electrical pin count before reassembly. Because this is an in-tank module, access is typically through the fuel tank area and proper fuel system depressurization is required before removal.

Quality Assurance

Sparta is distributed by Delphi, an OE fuel-system supplier, and is positioned for higher-mileage and earlier model vehicles. PN3059 is built as a standard replacement fuel pump module assembly for direct-fit service on the listed Chevrolet Blazer and GMC Jimmy applications.
