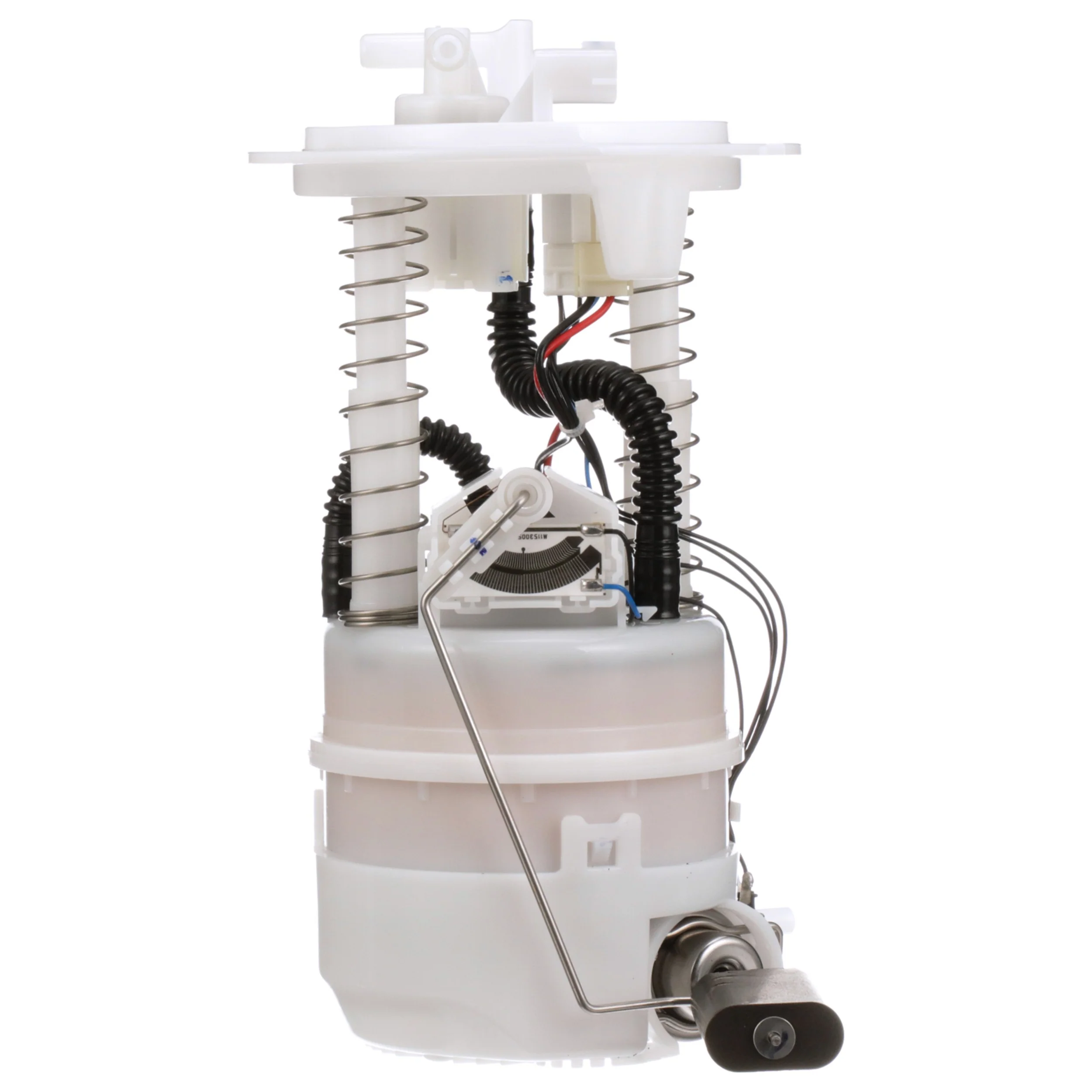

Sparta PN3108 Fuel Pump Module Assembly

Fuel Pump Module for Nissan Murano

Sparta PN3108 is a specific-fit fuel pump module assembly for the 2003-2007 Nissan Murano. Built as a standard replacement for gasoline applications, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete in-tank service solution.

Key Features

• Specific-fit fuel pump module assembly for 2003-2007 Nissan Murano
• 12-volt electric turbine pump design for in-tank installation
• Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
• Quick-connect outlet with 2 outlets and 2 connectors
• Plastic housing with blade terminals and 5-terminal configuration
• Average flow rating of 29 and maximum pressure of 80
• Package contents: fuel pump module assembly with float arm and instruction sheet

Detailed Description

Sparta PN3108 is engineered for the 2003-2007 Nissan Murano and is distributed by Delphi, an OE fuel system supplier with deep application knowledge. This fuel pump module assembly is built for gasoline vehicles and uses an in-tank electric turbine pump layout with a fuel sending unit and regulator already integrated. The assembly also includes an internal strainer, fuel filter, and nitrile rubber gasket/seal to support a complete replacement of the original module. This part cross-references Airtex E8536M and Carter P76359M for the same application. For shoppers searching for a Nissan Murano fuel pump module assembly, PN3108 provides the core components needed for a direct replacement service.

What It Helps Fix

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Fuel gauge errors related to a worn sending unit
• Low fuel pressure from an aging in-tank module
• Driveability issues tied to restricted fuel flow or a clogged internal filter

Installation Notes and Tips

Replace the module with the tank safely relieved of fuel pressure and confirm the electrical connector and quick-connect outlet match the vehicle harness and fuel line setup. Because mounting hardware and lock ring are not included, reuse or source the required tank-side hardware as needed. Verify the tank opening seal surface is clean before installing the new gasket, and confirm the float arm moves freely after installation. Fits 2003-2007 Nissan Murano, N/A.

Quality Assurance

Sparta is backed by Delphi distribution and OE fuel system expertise, with a focus on fit and performance for higher-mileage and earlier-model vehicles. PN3108 is a standard replacement fuel pump module assembly built to match the specified application requirements.
