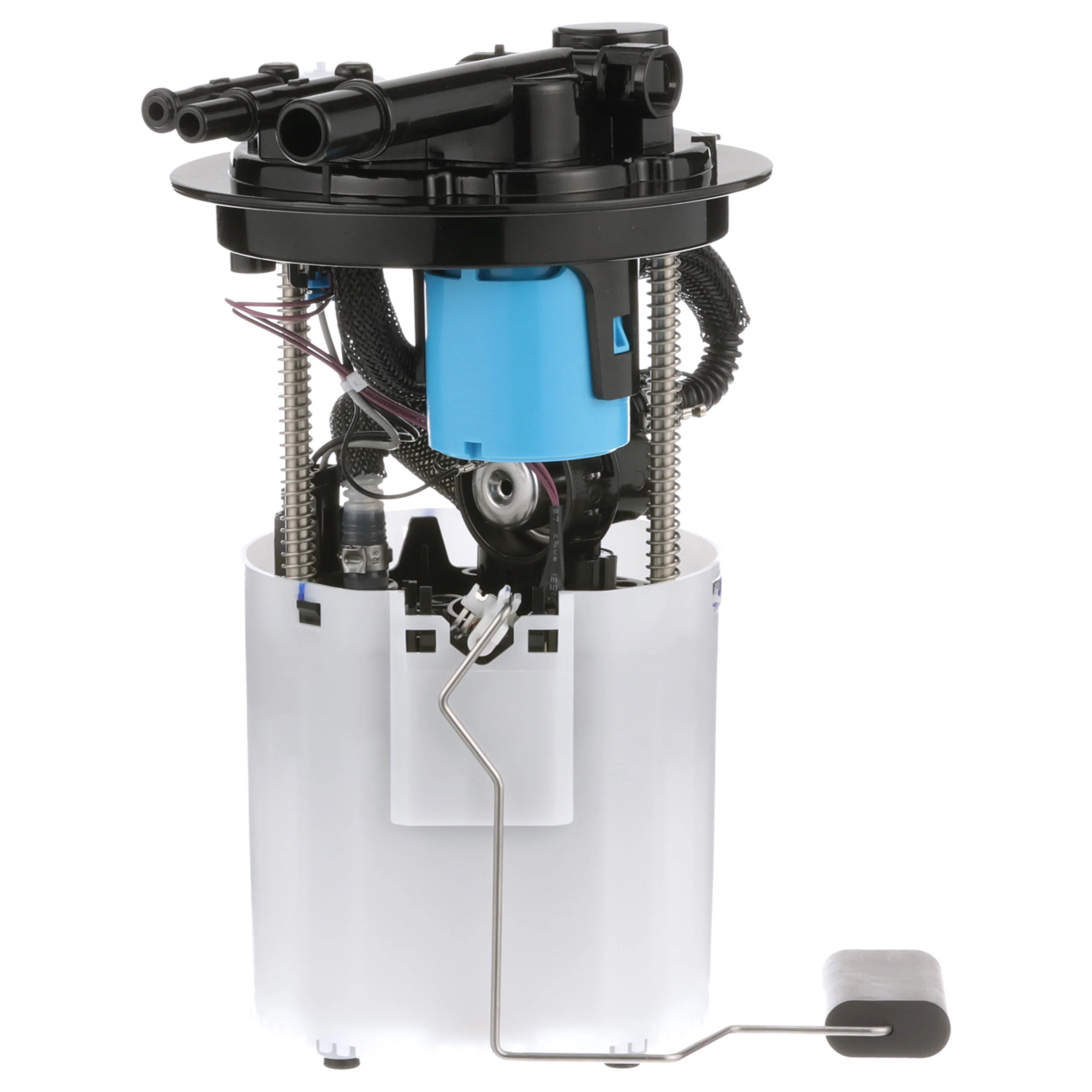

Sparta PN3164 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Buick and Pontiac

Sparta PN3164 is a specific-fit in-tank fuel pump module assembly for select 2004-2005 Buick Rendezvous and 2004-2005 Pontiac Aztek models. Built as a standard replacement for gasoline applications, it includes the fuel sending unit, fuel filter, strainer, gasket/seal, and fuel tank pressure sensor for a complete service replacement.

Key Features

• Specific-fit fuel pump module assembly for 2004-2005 Buick Rendezvous and 2004-2005 Pontiac Aztek
• 12-volt electric turbine pump design for in-tank gasoline systems
• Includes fuel sending unit, fuel filter, strainer, and gasket/seal
• Quick-connect outlet with 3 outlet ports and 1 oval connector
• Standard replacement grade with plastic housing
• Maximum pressure rating of 65 and minimum pressure rating of 55
• Fuel tank pressure sensor included

Detailed Description

Sparta PN3164 is engineered for higher-mileage and earlier-model vehicles, drawing on OE-focused fuel system expertise from Delphi distribution. This fuel pump module assembly is built for direct replacement service in gasoline-powered vehicles and is configured for in-tank installation with a turbine-style electric pump, 3-terminal male connection, and female oval connector. The assembly also includes the float arm and seal for a more complete repair. This part cross-references Carter P76085M and Spectra Premium SP6010M for the same application. For shoppers searching for a fuel pump module assembly for a 2004-2005 Buick Rendezvous or 2004-2005 Pontiac Aztek, PN3164 provides the core components needed to restore fuel delivery and tank-level signal output.

Common Problems This Part Can Address

• Hard starting caused by weak or inconsistent fuel delivery
• Engine stalling from insufficient fuel pressure
• Inaccurate fuel level readings from a worn sending unit
• Fuel starvation under load from a failing in-tank pump
• Check engine light concerns related to fuel tank pressure sensor or fuel system performance

Installation Notes and Tips

Install PN3164 in the fuel tank using the correct service procedure for the vehicle. Verify connector shape, terminal count, outlet style, and tank opening dimensions before installation. Because mounting hardware and lock ring are not included, reuse or source the required vehicle-specific hardware as needed. Replace the seal during service and inspect the tank, wiring, and fuel lines for wear before reassembly.

Quality Assurance

Sparta fuel system components are backed by Delphi distribution and OE-focused fuel expertise. PN3164 is a standard replacement fuel pump module assembly built for specific-fit applications and supplied with the key service components listed above.
