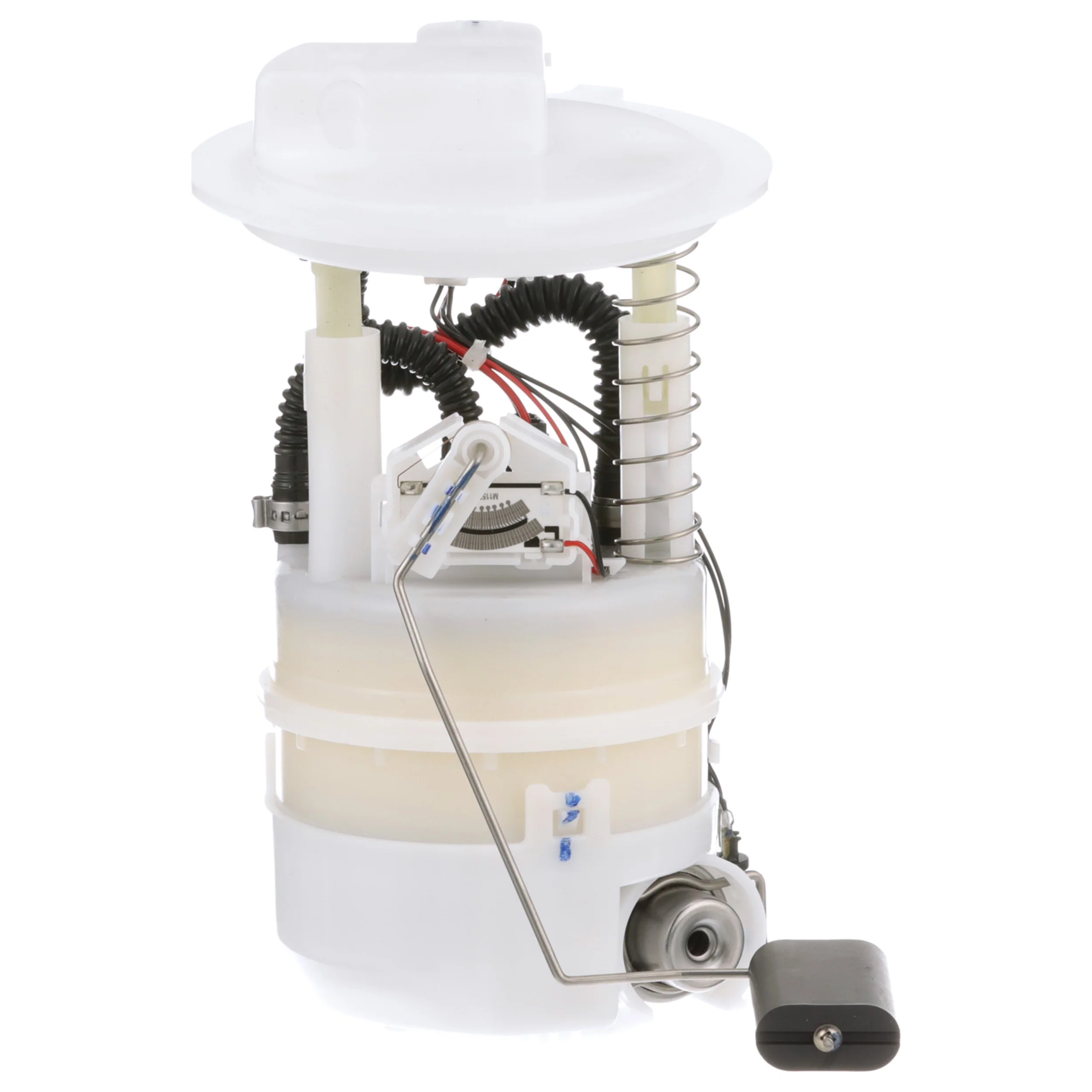

Sparta PN3169 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Sentra

The Sparta PN3169 fuel pump module assembly is a specific-fit, in-tank replacement for 2013-2019 Nissan Sentra models. Built for gasoline applications, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete service solution.

• Specific-fit fuel pump module assembly for 2013-2019 Nissan Sentra
• 12-volt electric turbine pump design
• In-tank installation with quick-connect outlet
• Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
• Standard replacement grade for higher-mileage and earlier model vehicles
• Maximum pressure: 105 psi; minimum pressure: 51 psi
• Average flow rating: 45 and average current draw: 10
• Connector: 1 rectangle female connector with 5 male blade terminals

Detailed Product Overview

Sparta PN3169 is engineered as a direct replacement fuel pump module assembly for the Nissan Sentra fuel system. It is designed for gasoline use and features an in-tank electric turbine pump with a quick-connect outlet, plastic housing, internal strainer, and integrated fuel level sending unit. The module also includes a regulator and fuel filter, helping restore consistent fuel delivery and tank-level signal performance. This part cross-references Airtex E9213M and Carter P77206M for the same application.

Compatible with 2013-2019 Nissan Sentra, this module is a practical OE-style service part for drivers searching for a fuel pump module assembly for Nissan Sentra PN3169 or a replacement fuel pump module for 2013-2019 Sentra models.

Common Issues This Part May Address

• Hard starting caused by weak or inconsistent fuel pressure
• Engine hesitation or stalling from inadequate fuel delivery
• Inaccurate fuel gauge readings from a worn sending unit
• Fuel starvation under load from a failing in-tank pump
• Check engine light concerns related to fuel system performance

Installation Notes and Tips

Verify tank compatibility, connector style, and outlet configuration before installation. Replace the tank seal during service and inspect the fuel lines, electrical connector, and mounting surfaces for wear or contamination. Because mounting hardware and lock ring are not included, reuse or source those components as needed. Confirm the vehicle is a gasoline application and follow the service manual for pressure relief and system priming procedures.

Quality Assurance

Sparta is distributed by Delphi, an OE fuel system supplier, and is positioned for higher-mileage and earlier model vehicles. PN3169 is built as a standard replacement fuel pump module assembly for direct-fit service on the Nissan Sentra platform.
