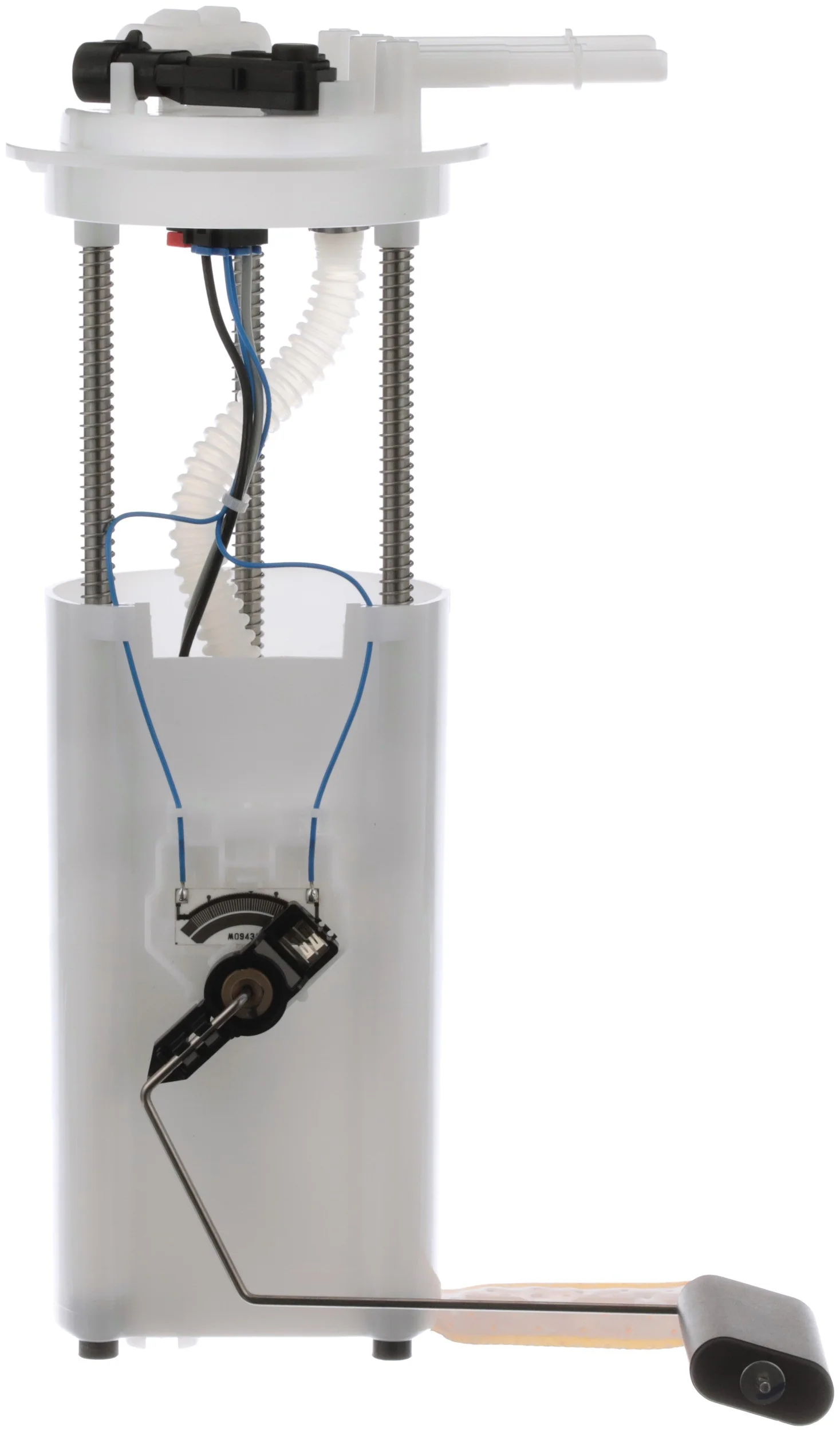

Sparta PN3185 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Honda and Isuzu

Sparta PN3185 is a specific-fit in-tank fuel pump module assembly for select Honda and Isuzu applications. It includes the fuel sending unit, strainer, gasket or seal, wire harness, and float arm for a complete replacement focused on fuel delivery and tank-level signal accuracy.

• Specific-fit fuel pump module assembly
• In-tank electric turbine pump design
• 12-volt gas application
• Maximum pressure: 109 psi; minimum pressure: 44 psi
• Average flow rating: 23
• Fuel sending unit included
• Fuel tank pressure sensor included
• Strainer and gasket/seal included
• Wire harness included
• Outlet type: quick connect; 2 outlets
• Housing material: plastic

Detailed Product Overview

Built as a standard replacement, Sparta PN3185 is engineered for higher-mileage and earlier-model vehicles and is distributed through Delphi, an OE fuel-system supplier. This fuel pump module assembly is designed for direct replacement service on 2001 Honda Passport, 2001 Isuzu Rodeo, 2001 Isuzu Rodeo Sport, and 2002 Isuzu Axiom. This part cross-references Bosch 67928 for the same application.

PN3185 uses a 4-wire, 1-connector oval female interface with blade terminals and a male terminal layout. The module is configured for in-tank installation, uses an external strainer inlet, and includes a nitrile rubber seal for tank sealing. The assembly also incorporates a fuel sending unit and fuel tank pressure sensor to support fuel level reporting and system monitoring.

Common Replacement Reasons

• Hard starting or no-start caused by weak fuel delivery
• Fuel pressure readings outside the specified range
• Inaccurate fuel gauge operation from a worn sending unit
• Fuel pump noise, intermittent operation, or loss of prime
• Fuel system faults related to the tank pressure sensor

Installation Notes and Tips

Verify connector shape, terminal count, outlet style, and tank configuration before installation. PN3185 is a specific-fit module for in-tank use, so the tank opening, seal surface, and electrical connection should be inspected before assembly. The package includes the fuel pump module assembly with float arm, splices, wire harness, and instruction sheet; mounting hardware and lock ring are not included.

Quality Assurance

Sparta is backed by Delphi distribution and OE fuel-system expertise, with a focus on fit and performance for older vehicle platforms. PN3185 is built as a standard replacement fuel pump module assembly for direct service use on the listed Honda and Isuzu applications.
