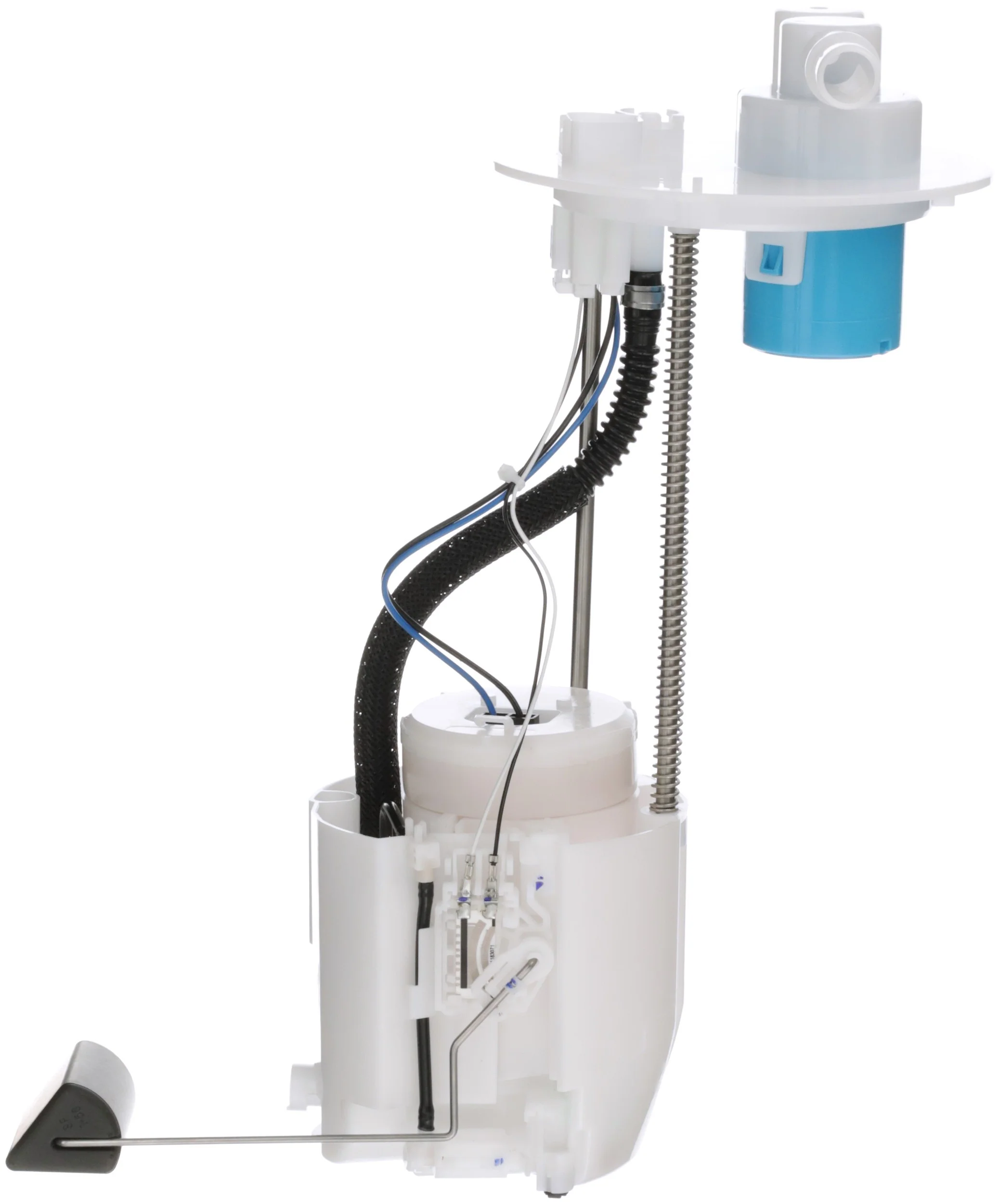

Fuel Pump Module for Toyota Yaris and Scion xD
The Sparta PN3222 fuel pump module assembly is a standard replacement for select Toyota Yaris and Scion xD applications. Built for in-tank use, it includes the pump module, float arm, seal, splices, wire harness, and instruction sheet for a complete service-focused repair.
Key Features
- Fuel pump module assembly for gasoline applications
- In-tank electric pump design with 13.0-volt operation
- Maximum pressure rating of 50.0
- Quick-connect outlet with 0.375 in. outside diameter
- Internal strainer included with seal and gasket
- 4-terminal blade connector, male terminal gender
- Standard replacement grade for higher-mileage and earlier model vehicles
- Package contents: fuel pump module assembly w/float arm, seal, splices, wire harness, instruction sheet
Detailed Description
Sparta PN3222 is an electric in-tank fuel pump module assembly for gas-powered vehicles. It is engineered as a standard replacement solution for earlier model and higher-mileage vehicles, with the fit and performance focus associated with Delphi OE fuel system expertise. This assembly uses a quick-connect outlet, internal strainer, and blade-style 4-terminal connection for straightforward integration into the fuel delivery system. It fits 2006-2018 Toyota Yaris and 2008-2014 Scion xD, making it a direct service part for common fuel delivery repairs. This part cross-references Carter P77246M for the same application.
Common Repair Applications
- Hard starting caused by a weak or failing fuel pump
- Engine hesitation or stalling from inconsistent fuel delivery
- Low fuel pressure in the tank-mounted fuel system
- Fuel gauge issues related to the integrated float arm assembly
- Service replacement for worn pump module components
Installation Notes and Tips
Install this module in the fuel tank and verify the quick-connect outlet, terminal count, and seal condition before reassembly. Confirm vehicle-specific fitment for your Toyota Yaris or Scion xD by year before installation, and follow the included instruction sheet during service. Replace the seal during installation and inspect the tank opening and electrical connector for wear or corrosion.
Quality Assurance
Sparta fuel system parts are distributed by Delphi, an OE full-line fuel supplier with application knowledge rooted in original-equipment fuel system engineering. PN3222 is built as a standard replacement fuel pump module assembly for select Toyota Yaris and Scion xD models.
