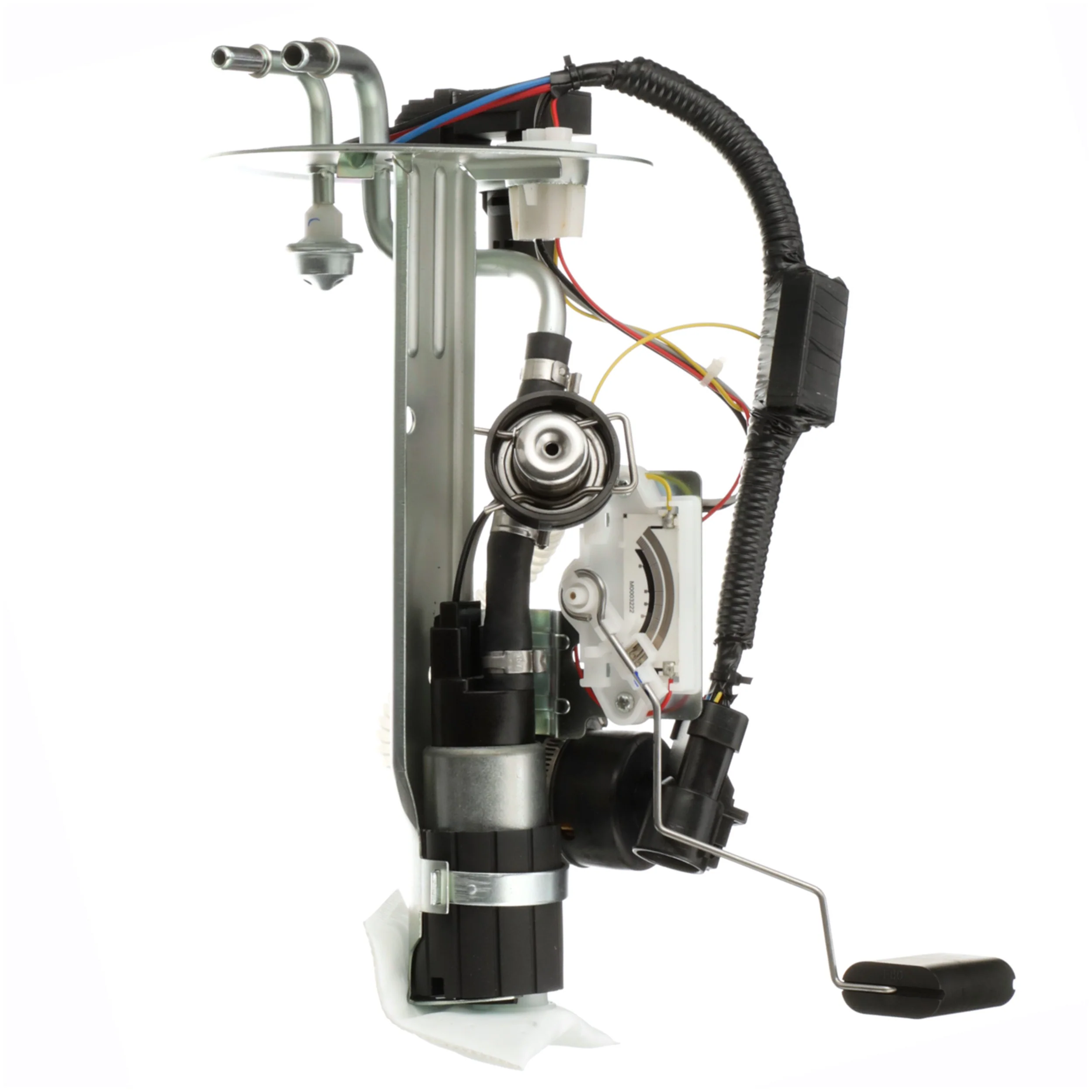

Sparta PN4040 Fuel Pump Hanger Assembly

Fuel Pump Hanger Assembly for 1999 Ranger and B3000

The Sparta PN4040 fuel pump hanger assembly is a specific-fit, in-tank replacement for select 1999 Ford Ranger and 1999 Mazda B3000 applications. Built with a metal hanger, electric turbine pump, and included fuel sending unit, it addresses fuel delivery and level-signal service in one assembly.

Key Features

• Specific-fit fuel pump hanger assembly for 1999 Ford Ranger and 1999 Mazda B3000
• In-tank electric turbine pump with 12V operation
• Fuel sending unit included for fuel level reporting
• Metal construction with gasket/seal and strainer included
• Quick-connect outlet design with 0.375 in. outlet outside diameter
• Standard replacement grade for gas applications
• Maximum pressure rating: 80.0; minimum pressure: 58
• Average flow rating: 34.0 and average current draw: 10.0

Detailed Description

Sparta PN4040 is a fuel pump hanger assembly engineered for gasoline vehicles that require an in-tank, specific-fit replacement. It includes the fuel pump, fuel sending unit, float arm, seal, two retainer clips, and an instruction sheet, making it a complete service assembly for fuel delivery and tank-level function. The turbine-style pump uses a female round connector with 8 terminals, a pin terminal type, and a quick-connect outlet for straightforward integration with the vehicle’s fuel system. This part cross-references Airtex Fuel Pumps E2260S and Continental 67157 for the same application. Compatible with 1999 Ford Ranger and 1999 Mazda B3000, PN4040 is a practical OE-style replacement for vehicles needing a direct-fit hanger assembly.

Common Problems This Part Addresses

• Hard starting caused by weak or failing in-tank fuel pump output
• Inaccurate fuel gauge readings from a worn sending unit
• Fuel starvation under load from restricted pump performance
• Intermittent fuel delivery from an aging hanger assembly
• Seal-related fuel tank service issues at the pump module opening

Installation Notes and Tips

Verify tank cleanliness before installation and inspect the fuel lines, electrical connector, and tank opening for wear or damage. The assembly uses a nitrile rubber gasket/seal and includes a strainer, so confirm all sealing surfaces are clean and properly seated before closing the tank. Because this is a specific-fit in-tank assembly, match the vehicle application carefully before installation. Fits 1999 Ford Ranger, N/A. Fits 1999 Mazda B3000, N/A.

Quality Assurance

Sparta is distributed by Delphi, an OE full-line fuel supplier, and is positioned for higher-mileage and earlier-model vehicles where fit and fuel-system performance matter. PN4040 is built as a standard replacement fuel pump hanger assembly for gasoline applications.
